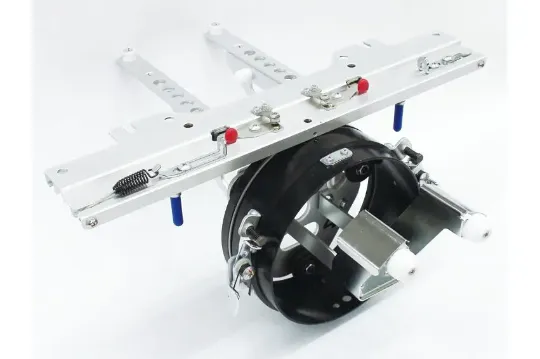

Cap fram main unit ASSY can be used with various cap frames and pocket frames.
◎Wide Cap Frame
◎Two Types of Semi-Wide Cap Framse
◎Side Cap Frame
◎Back Cap Frame
◎Four Types of Pocket Frames

Applicable Models：KS-C, KY-CII, KT-CAII, KT-CBIII, KT-CII
※Cap Frame Main Unit ASSY may have different parts depending on the machine.

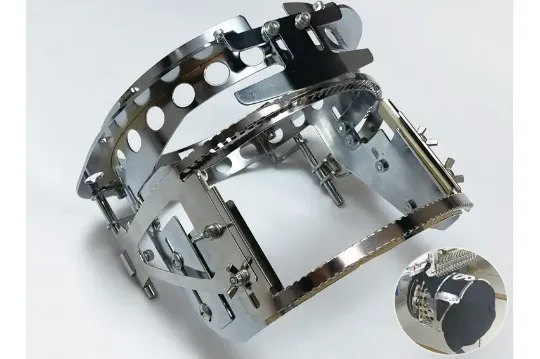

This cap frame has the largest effective embroidery area.
It allows for wide embroidery coverage from the front to the side of the cap, and can support various thicknesses of caps by adjusting the position of the fexing belt.

Applicable Models and Embroidery Area：
KT-CAII (250X400)...72mm (H)x 360mm(V)
KT-CAII (250X250)...72mm(H) x 250mm(V)
KT-CBIII, KY-CII, KS-C...86mm(H) x 360mm(V)

※The vertical embroidery area varies with the cap depth.

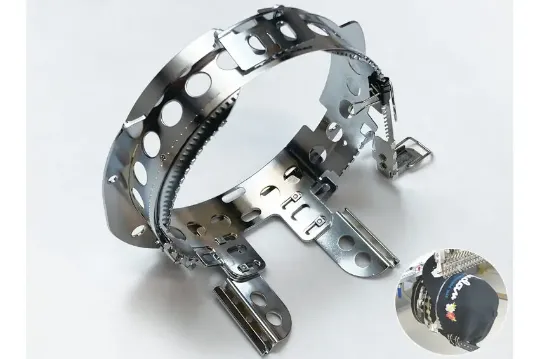

This cap frame is specialized for embroidery on the front position of the cap.By securely fixing the embroidery area, it enhances the embroidery quality. It supports thick fabric and mesh sweatband caps such as baseball caps, firefighter caps, and military caps.

Applicable Models and Embroidery area：
KT-CAII, KT-CBIII, KY-CII, KS-C
Frame for 120mm: 55~60mm(H) x 120mm(V)
Frame for 180mm: 55~60mm(H) x 180mm(V)

※The set includes 120 mm and 180 mm frames.
※The vertical embroidery area varies with the cap depth.

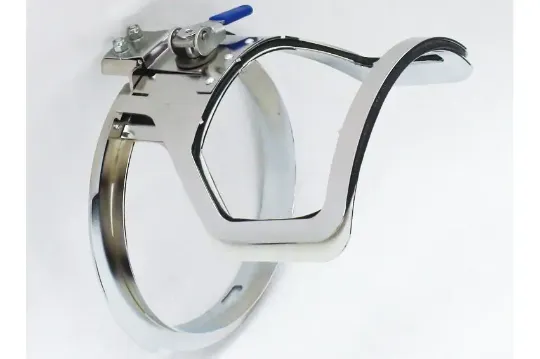

This cap frame is specialized for embroidery on the side of the cap.
Avoiding the brim of the cap, it securely holds the fabric and enhance the embroidery quality.

Applicable Models：KT-CAII, KT-CBIII, KY-CII, KS-C

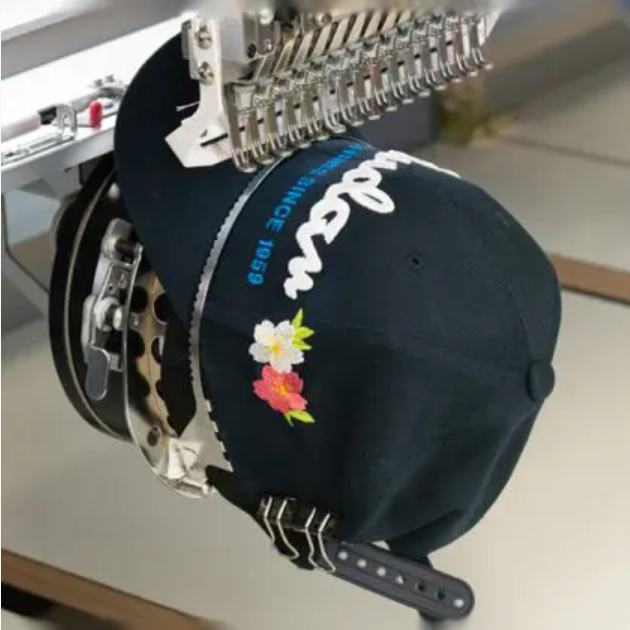

This cap frame is specialized for embroidery on the back of the cap.
It securely holds the fabric and enhance the embroidery quality.

Applicable Models：KT-CAII, KT-CBIII, KY-CII, KS-C

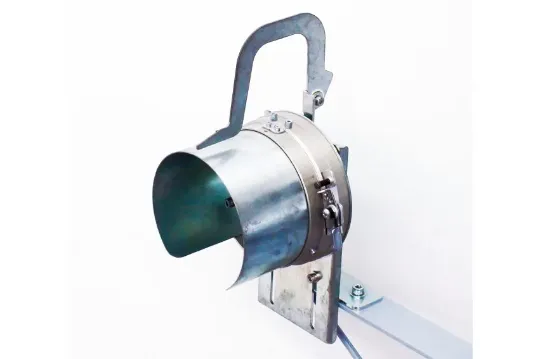

This jig is used for setting caps onto various frames.
※For semi-wide cap frames, replacing with a dedicated drum is required.

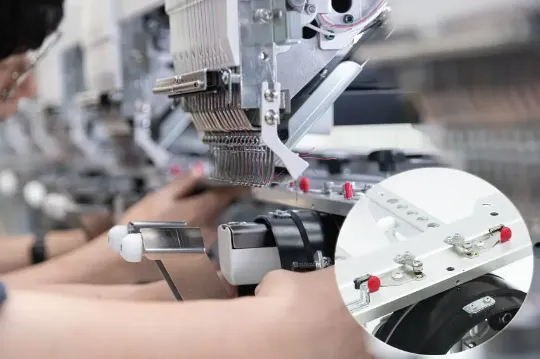

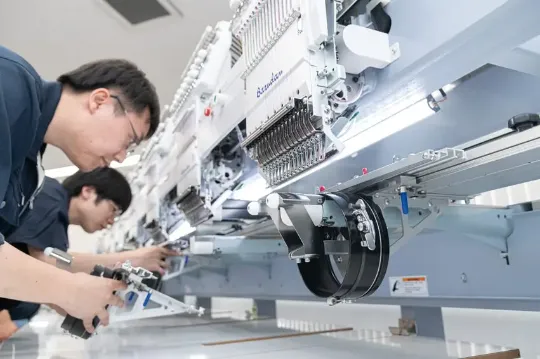

Our proprietary shaftless cap frame can be easily mounted without tools and prevents oil and dirt from sticking to the products.

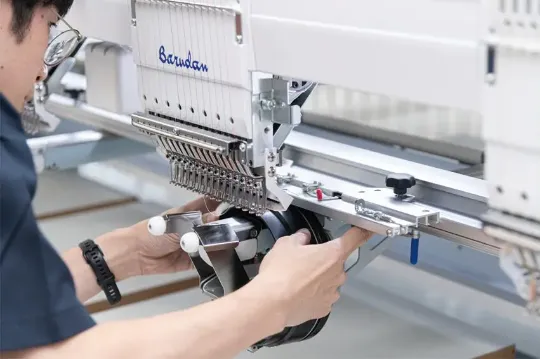

Since the cap frame can be mounted only on the embroidery head that is in use, the mounting time is the fastest in the industry.

When removing the cap frame, the simple locking mechanism makes it easy to store.
